STACCATO HD P4

NEW DPM Mechanical Recoil Reduction System for STACCATO HD P 4" BARREL

The OEM spring plug must always be installed with the DPM system.

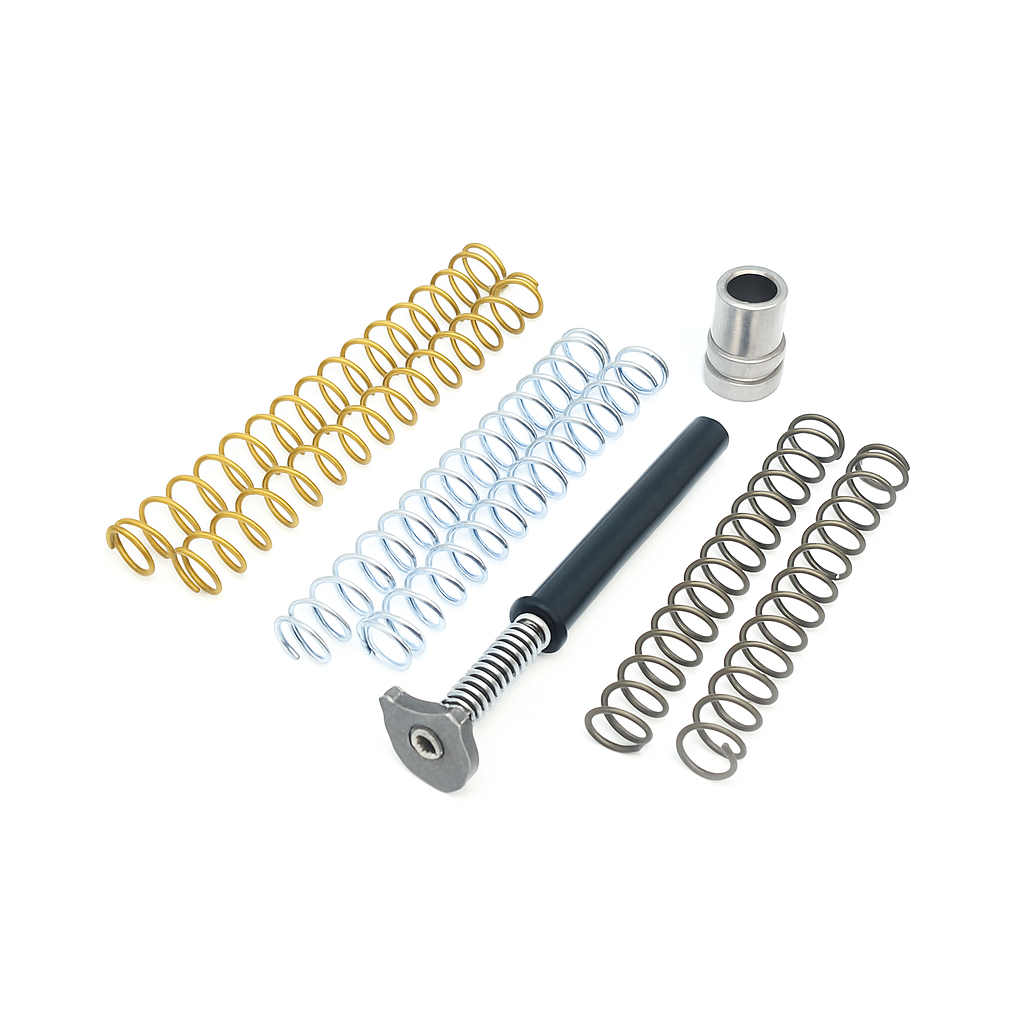

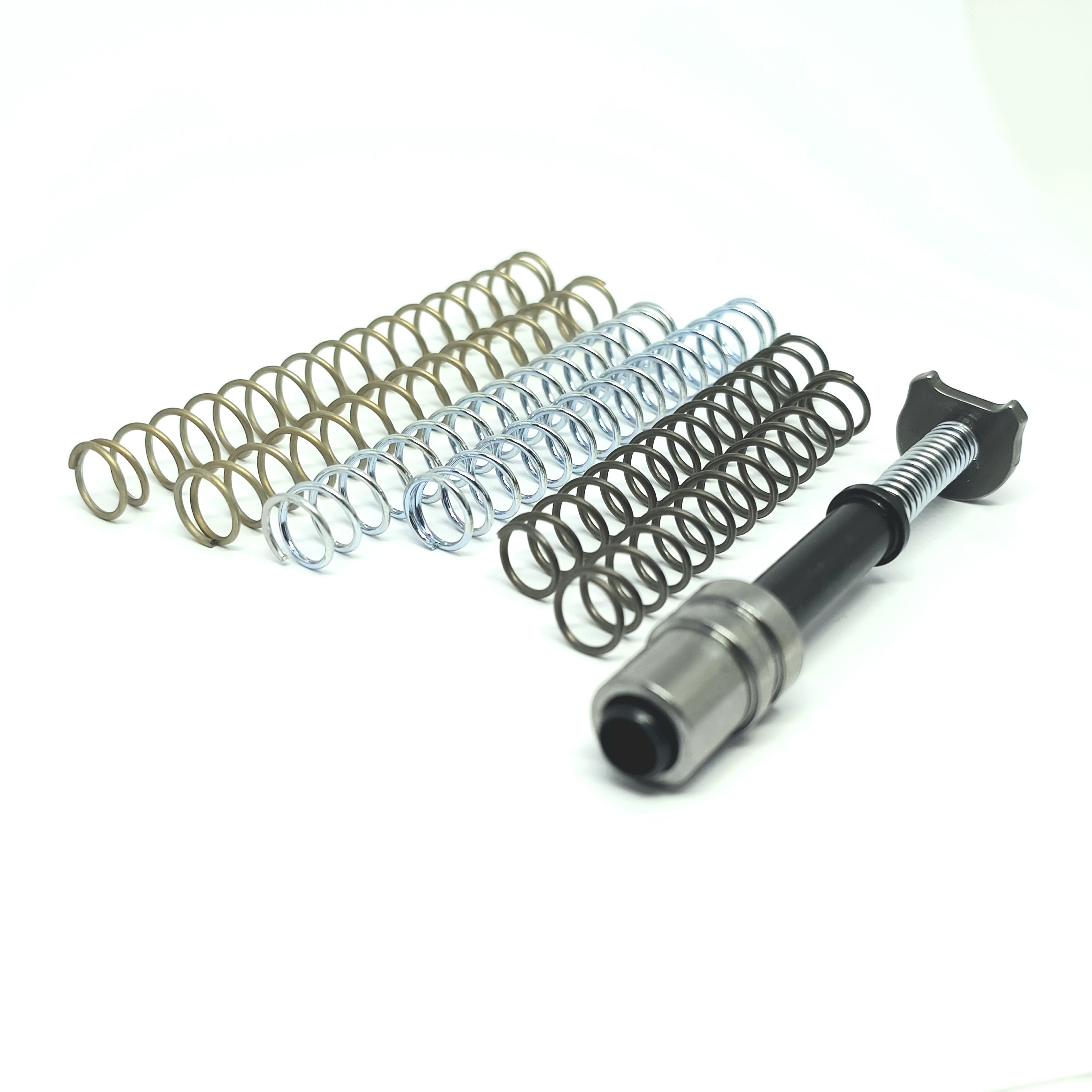

 The kit includes six different springs, one spring retainer, and one recoil guide rod.

Must Watch: Installation Instructions

**As we lead the evolution of recoil reduction technology, products may change versions (new design with different springs, with or without plugs, washers, etc.) without any prior notice.**

Pound Ratings for each set:

1.0 mm wire diameter (Black color)

Slide in the battery (idle position)

• Short: 5.7 lbs
• Long: 6.4 lbs

Slide at full open position

• Short: 11 lbs
• Long: 12.1 lbs

1.05 mm wire diameter (Gold color)

Slide in the battery (idle position)

• Short: 6.6 lbs
• Long: 7.4 lbs

Slide at full open position

• Short: 13.2 lbs
• Long:  14.3 lbs

1.10 mm wire diameter (Silver color)

Slide in the battery (idle position)

• Short: 7.3 lbs
• Long: 8.15 lbs

Slide at full open position

• Short: 15.4 lbs
• Long: 16.5 lbs

Overall Advantages

• Faster follow up shots
• Improved firing speed
• Slide and Frame Protection
• Elimination of jams
• Significant recoil reduction
• Better double-tap concentration
• Better control and greater accuracy

Lifetime Warranty.

For changes to features, like comp set-up, threaded barrels, slide conversions etc., contact us via email at [email protected] before placing your order. In some cases, we need to determine whether a custom product is required.

Millions  of our patented products are in service to military, law enforcement, sports and civilian firearms around the world.

Made in Greece – EU.
