FN 509 LS EDGE 5'' Barrel

DPM Adjustable Mechanical Recoil Reduction System for FN 509 LS EDGE 5'' BARREL

New DPM Recoil Reduction System for the FN 509 LS EDGE 5" Barrel pistol!

This high-end tech system works due to the multi-spring intricate rod (2 springs) in combination with the 4 external springs that work as buffer, and controls the functionality of the pistol.

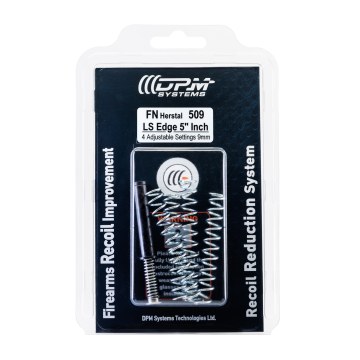

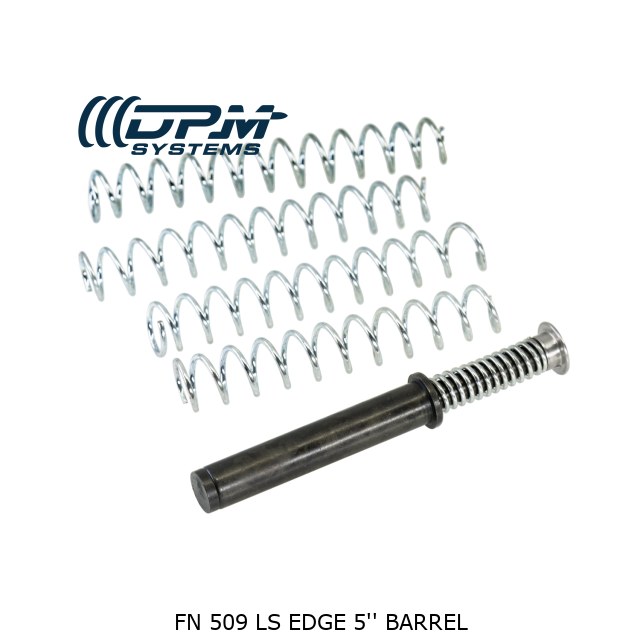

The kit includes 1 Recoil Mechanism and 4 external springs, 2 x 1.1 mm wire diameter and 2 x 1.15mm wire diameter, all with different power rates.

The long springs set is softer than the standard springs.

**As we lead the evolution of recoil reduction technology, products may change versions (new design with different springs, with or without plugs, washers, etc.) without any prior notice.**

Power Rates

Soft Springs 1.1mm

Slide on the battery:

• Short: 8.8lbs
• Long:  9.5lbs

 Slide full open position (approx.):

• Short: 16.5lbs
• Long:  17.5lbs

Standard Springs 1.15 mm

Slide on the battery:

• Short: 8.8lbs
• Long: 9.5lbs

Slide full open position (approx.):

• Short: 18.7lbs
• Long:  19.8lbs

 Overall Advantages

• Faster follow up shots
• Improved firing speed
• Slide and Frame Protection
• Elimination of jams
• Significant recoil reduction
• Better double-tap concentration
• Better control and greater accuracy

Lifetime Warranty.

For changes to features, like comp set-up, threaded barrels, slide conversions etc., contact us via email at [email protected] before placing your order. In some cases, we need to determine whether a custom product is required.

Millions of our patented products are in service to military, law enforcement, sports and civilian firearms around the world.

How it works

Made in Greece – EU.
