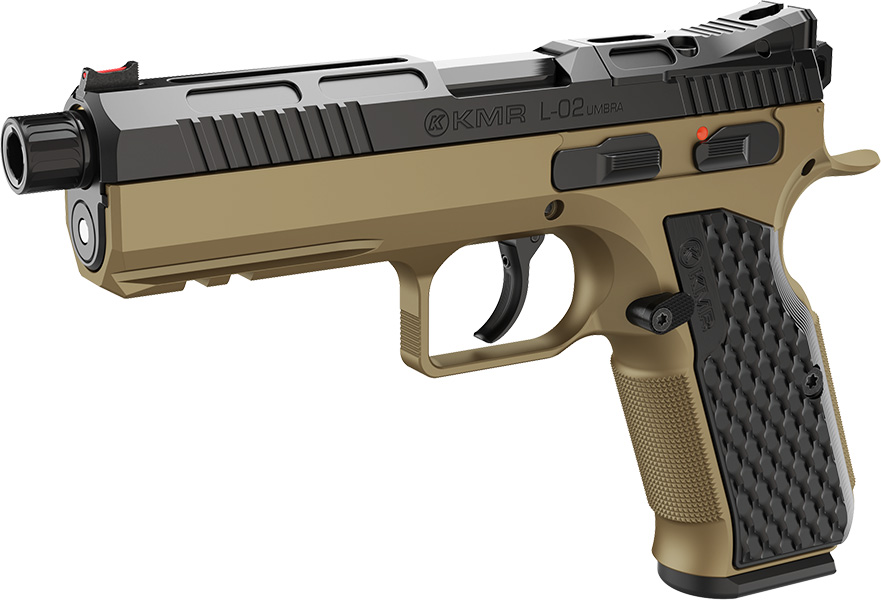

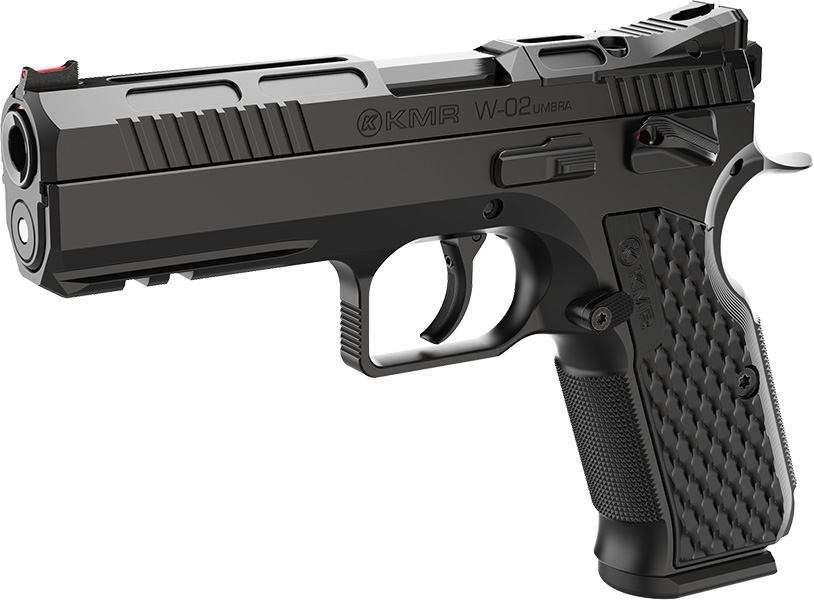

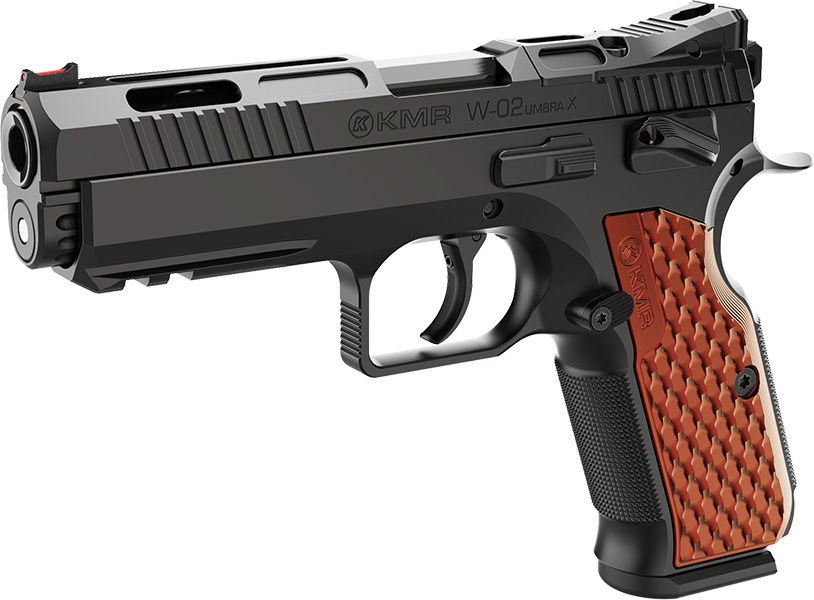

KMR UMBRA L-02 & W-02 (X) 4.5" BARREL & W-02 UMBRA 5" INCH barrel

NEW DPM Mechanical Recoil Reduction System for KMR UMBRA L-02 & W-02 (X) 4.5" INCH BARREL & W-02 UMBRA 5" INCH barrel- 18 USER SETTINGS

This DPM kit includes two complete sets of external springs, one set with 1.0mm wire diameter and another with 1.05mm. Each set contains three springs of varying lengths, with the 1.05mm springs offering a heavier pound rating for added recoil control. Additionally, three spring plugs with different lengths and depths allow you to customize total pound ratings for your balance of power and precision.

**As we lead the evolution of recoil reduction technology, products may change versions (new design with different springs, with or without plugs, washers, etc.) without any prior notice.**

The  ALUMINUM spring plug must always be installed when the DPM Recoil Rod and springs are used.

Pound Ratings:

Slide on the battery (idle position)

Soft Springs 1.0mm

• Short spring: 2.5kgs - 5.5 lb
• Medium spring: 3kgs - 6 lb
• Long Spring:  3.5kgs - 7.7 lb

Standard Springs 1.05mm

• Short spring:  2.7kgs - 5.95 lb
• Medium spring: 3.2kgs - 7 lb
• Long Spring: 3.7kgs - 8.15 lb

  Total power (slide full open position)  approx.

• Short Plug:  6kgs  - 13.2 lb
• Medium Plug: 8kgs - 17.6 lb
• Long Plug:  10kgs -  22 lb

Overall Advantages

• Faster follow up shots
• Improved firing speed
• Slide and Frame Protection
• Elimination of jams
• Significant recoil reduction
• Better double-tap concentration
• Better control and greater accuracy

Lifetime Warranty.

How it works

Made in Greece - EU.
